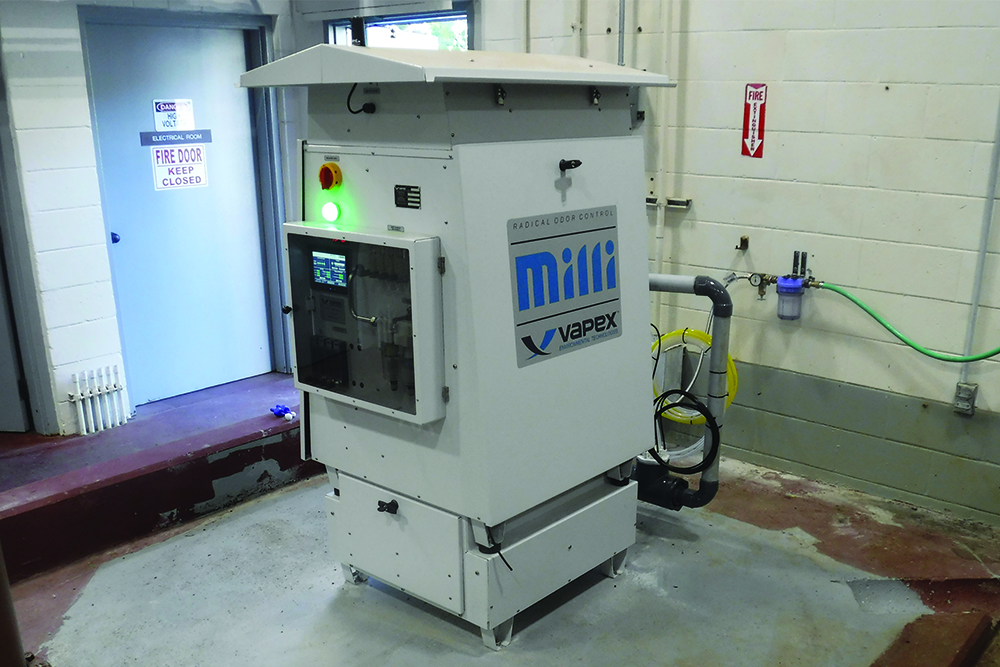

VAPEX MILLI

Treat H2S, mercaptans, amines, and other odorous compounds in enclosed spaces.

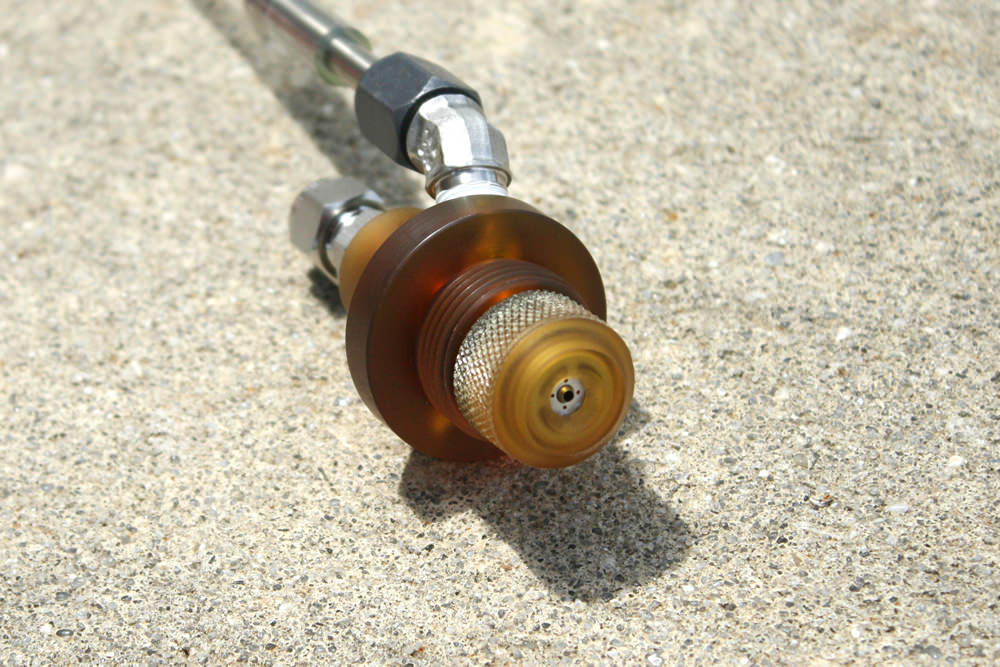

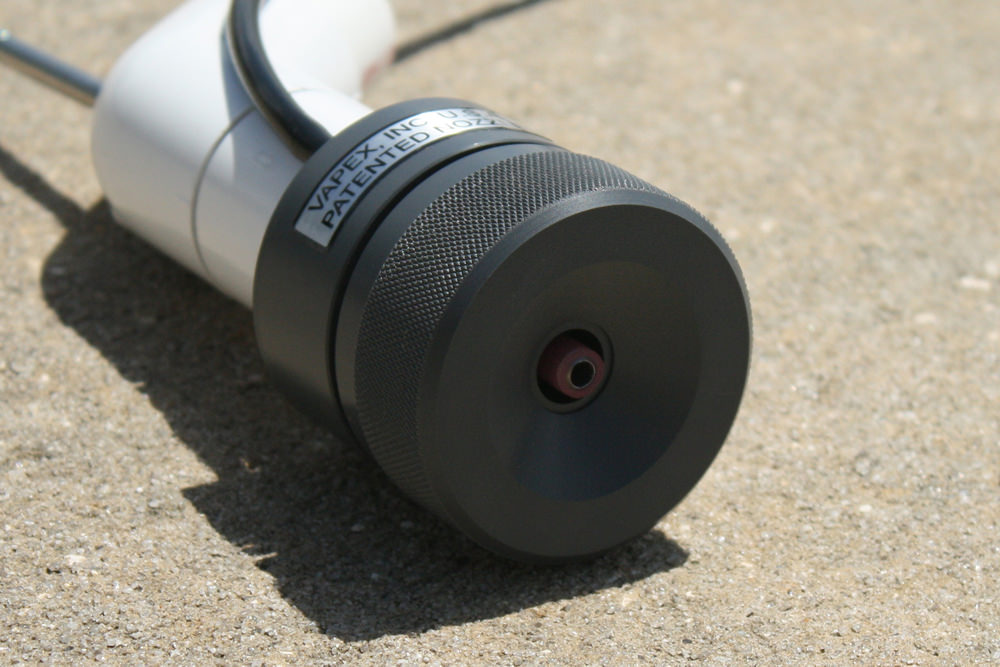

The Vapex MILLI is an odor control system specifically designed to treat H2S, mercaptans, amines, and other odorous compounds in enclosed spaces. It combines ozone, water, and air using a patented 3‐fluid nozzle to atomize the water molecules to create hydroxyl radicals. The odorous air is not extracted instead the odors are treated at the same space where they are generated.

MAIN FEATURES

  • Eliminates H2S and other odorous compounds
  • Reduce or eliminate some forms of Fats, Oils, and Grease (FOG)
  • Reduce or eliminate biofilm or bacterial growth in the treatment area
  • Reduce the rate of corrosion typically associated with low pH
  • Impart a residual oxidant to the defined space to absorb unexpected spikes of odors
  • 2‐Way Communication for Real Time Operation Monitoring
  • Able to operate unit remotely
  • Programmable oxidant levels to treat diurnal flow

APPLICATIONS

  • Lift Stations/Pump Stations
  • Wet Wells
  • Holding Tanks
  • Headworks
  • Covered Clarifiers

SPECIFICATIONS

Specifications MILLI
Maximum Treatment Volume, ft3 (m3) 42,000 (1,189)
Maximum Number of Nozzles 6
Oxidant Output, lbs/day (kg/day) ≤ 60
Average H2O Usage, gal/h/nozzle (l/h/nozzle)  ≤ 8 (30.3)
Air Output, cfm/nozzle (m3/hr/nozzle) 20 (34)
Material of Construction* TGIC polyester powder coated aluminum
System Dimensions, L in (cm) x W in (cm) x H in (cm) 54 (138) x 35 (89) x 44 (112)
Average System Weight, lbs (kg) 390 (177)
Actual Power Requirements:
     Volts, VAC 220
     Average Current Draw, A, 60Hz 28
